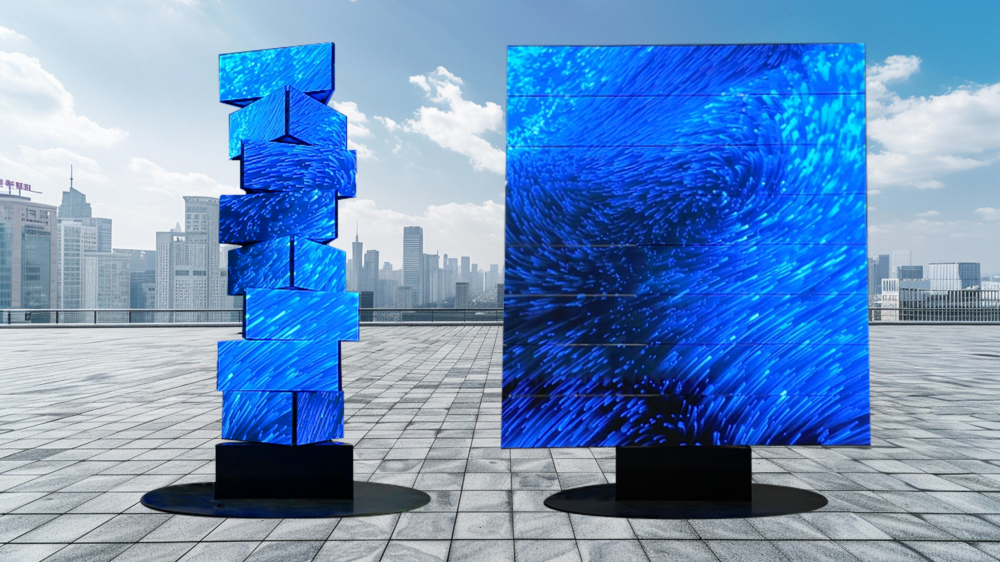

采用模块化设计，每个模块由多个滑动显示单元组成，安装方便，维护简单可整模块拆卸替换，也可以单个单元拆卸替换。 显示载体不限，可与 LED屏、LCD 拼接屏、LCD 显示器、投影机等不同显示载体多样化创意结合;
可实现可视化脚本，根据影片自动生成预定脚本动作脚本编辑简单便捷，零学习门槛;
采用多重防碰撞安全防护，提高设备运行稳定性，保证显示屏安全。 自研低噪音、稳定性高的传动系统，有效的减小了传动产生的噪音，同时提高了稳定性和动作准确度。
支持自定义加减速度、加减速时间，减少对装置本身冲击同时，使运动更加柔和。

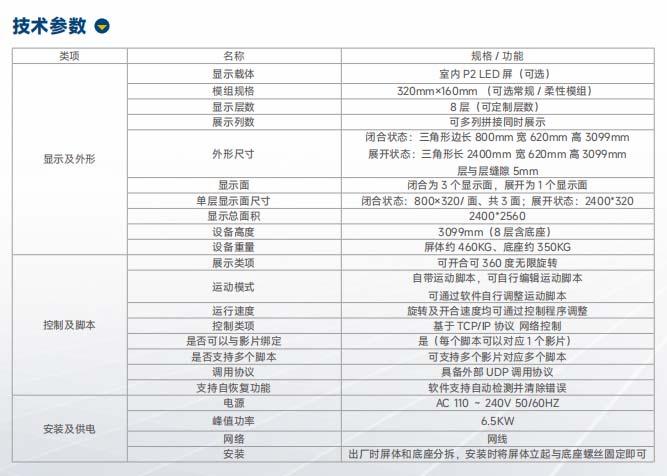

技术参数表 | Technical Specifications Sheet
| 类项Category | 名称Name | 规格 / 功能Specifications / Features |
|---|---|---|
| 显示及外形Display & Exterior | 显示载体Display Carrier | 室内P2 LED屏（可选）Indoor P2 LED Screen (Optional) |
| 模组规格Module Specifications | 320mm × 160mm（可选常规/柔性模组）320mm × 160mm (Optional regular/flexible modules) | |
| 显示层数Display Layers | 8层（可定制层数）8 Layers (Customizable) | |
| 展示列数Display Columns | 可多列拼接同时展示Supports multi-column splicing for simultaneous display | |
| 外形尺寸Dimensions (LWH) | 闭合状态：三角形边长800mm 宽320mm 高3099mmClosed State: Triangle side 800mm, Width 320mm, Height 3099mm展开状态：长2400mm 宽320mm 高3099mmExpanded State: Length 2400mm, Width 320mm, Height 3099mm层与层缝隙 5mmGap between layers: 5mm | |
| 显示面Display Surface | 闭合为3个显示面，展开为1个显示面Closed: 3 display surfaces. Expanded: 1 display surface. | |
| 单层显示面尺寸Single Layer Display Area | 闭合状态：800×320/面、共3面Closed State: 800×320 per surface, 3 surfaces total.展开状态：2400×320Expanded State: 2400×320 | |
| 显示总面积Total Display Area | 2400 × 2560 | |
| 设备高度Device Height | 3099mm (8层含底座)3099mm (8 layers including base) | |
| 设备净重Device Net Weight | 屏体约460KG、底座约350KGScreen: ~460KG, Base: ~350KG | |
| 设备毛重Device Gross Weight | 屏体约640KG、底座约445KGScreen: ~640KG, Base: ~445KG | |
| 控制及脚本Control & Script | 展示类项Display Category | 可开合可360度无限旋转Openable/Closable & 360° Infinite Rotation |
| 运动模式Motion Mode | 自带运动脚本，可自行编辑Built-in motion scripts, user-editable.可通过软件自行调整运动脚本Motion scripts adjustable via software. | |
| 运行速度Operating Speed | 旋转及开合速度均可通过控制程序调整Rotation and opening/closing speeds adjustable via control program. | |
| 控制类项Control Category | 基于TCP/IP协议网络控制Network control based on TCP/IP protocol | |
| 是否可以与影片绑定Video Binding Support | 是（每个脚本可以对应1个影片）Yes (Each script can correspond to 1 video) | |
| 是否支持多个脚本Multiple Scripts Support | 可支持多个影片对应多个脚本Supports multiple videos corresponding to multiple scripts | |
| 调用协议Calling Protocol | 具备外部UDP调用协议Equipped with external UDP calling protocol | |
| 支持自恢复功能Self-Recovery Function | 软件支持自动检测并清除错误Software supports automatic error detection and clearing | |
| 安装及供电Installation & Power Supply | 电源Power Supply | AC 110 ~ 240V 50/60HZAC 110 ~ 240V 50/60HZ |
| 峰值功率Peak Power | 6.5KW | |
| 网络Network | 网线Ethernet Cable | |
| 安装Installation | 出厂时屏体和底座分拆，安装时将屏体立起与底座螺丝固定即可。Screen and base are shipped disassembled. Installation involves erecting the screen body and fixing it to the base with screws. |
