采用模块化设计，每个模块由多个滑动显示单元组成，安装方便，维护简单可整模块拆卸替换，也可以单个单元拆卸替换。 显示载体不限，可与 LED屏、LCD 拼接屏、LCD 显示器、投影机等不同显示载体多样化创意结合;
可实现可视化脚本，根据影片自动生成预定脚本动作脚本编辑简单便捷，零学习门槛;
采用多重防碰撞安全防护，提高设备运行稳定性，保证显示屏安全。 自研低噪音、稳定性高的传动系统，有效的减小了传动产生的噪音，同时提高了稳定性和动作准确度。
可选用不同型号规格尺寸、轻型结构和重型结构: 支持自定义加减速度、加减速时间，减少对装置本身冲击同时，使运动更加柔和。

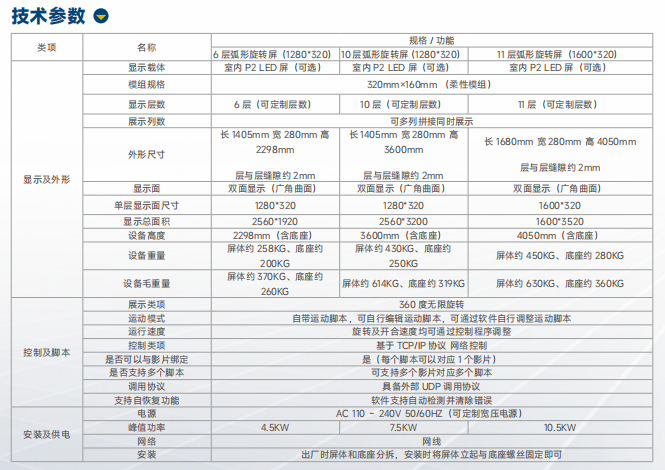

弧形旋转屏技术参数表
Arc-shaped Rotating Screen Technical Specifications
| 类项Category | 名称Name | 6层弧形旋转屏 (1280 * 320)6-Layer Arc Screen (1280 * 320) | 10层弧形旋转屏 (1280 * 320)10-Layer Arc Screen (1280 * 320) | 11层弧形旋转屏 (1600 * 320)11-Layer Arc Screen (1600 * 320) |
|---|---|---|---|---|
| 显示及外形Display & Exterior | 显示载体Display Carrier | 室内P2 LED屏（可选）Indoor P2 LED Screen (Optional) | 室内P2 LED屏（可选）Indoor P2 LED Screen (Optional) | 室内P2 LED屏（可选）Indoor P2 LED Screen (Optional) |
| 模组规格Module Specifications | 320mm×160mm（柔性模组）320mm×160mm (Flexible Module) | 320mm×160mm（柔性模组）320mm×160mm (Flexible Module) | 320mm×160mm（柔性模组）320mm×160mm (Flexible Module) | |
| 显示层数Display Layers | 6层（可定制层数）6 Layers (Customizable) | 10层（可定制层数）10 Layers (Customizable) | 11层（可定制层数）11 Layers (Customizable) | |
| 展示列数Display Columns | 可多列拼接同时展示Supports multi-column splicing for simultaneous display | 可多列拼接同时展示Supports multi-column splicing for simultaneous display | 可多列拼接同时展示Supports multi-column splicing for simultaneous display | |
| 外形尺寸Dimensions (LWH) | 长1405mm 宽280mm 高2298mmL 1405mm, W 280mm, H 2298mm | 长1405mm 宽280mm 高3600mmL 1405mm, W 280mm, H 3600mm | 长1680mm 宽280mm 高4050mmL 1680mm, W 280mm, H 4050mm | |
| 层与层缝隙Gap Between Layers | 约2mm~2mm | 约2mm~2mm | 约2mm~2mm | |
| 显示面Display Surface | 双面显示（广角曲面）Double-sided Display (Wide-angle Curved Surface) | 双面显示（广角曲面）Double-sided Display (Wide-angle Curved Surface) | 双面显示（广角曲面）Double-sided Display (Wide-angle Curved Surface) | |
| 单层显示面尺寸Single Layer Display Area | 1280 * 320 | 1280 * 320 | 1600 * 320 | |
| 显示总面积Total Display Area | 2560 * 1920 | 2560 * 3200 | 3200 * 3520 | |
| 设备高度（含底座）Device Height (with base) | 2298mm | 3600mm | 4050mm | |
| 设备净重Net Weight | 屏体约258KG、底座约200KGScreen: ~258KG, Base: ~200KG | 屏体约430KG、底座约250KGScreen: ~430KG, Base: ~250KG | 屏体约450KG、底座约280KGScreen: ~450KG, Base: ~280KG | |
| 设备毛重Gross Weight | 屏体约370KG、底座约260KGScreen: ~370KG, Base: ~260KG | 屏体约614KG、底座约319KGScreen: ~614KG, Base: ~319KG | 屏体约630KG、底座约360KGScreen: ~630KG, Base: ~360KG | |
| 控制及脚本Control & Script | 展示类项Display Category | 360度无限旋转360° Infinite Rotation | 360度无限旋转360° Infinite Rotation | 360度无限旋转360° Infinite Rotation |
| 运动模式Motion Mode | 自带运动脚本，可自行编辑，可通过软件自行调整运动脚本Built-in motion scripts, editable. Adjustable via software. | 自带运动脚本，可自行编辑，可通过软件自行调整运动脚本Built-in motion scripts, editable. Adjustable via software. | 自带运动脚本，可自行编辑，可通过软件自行调整运动脚本Built-in motion scripts, editable. Adjustable via software. | |
| 运行速度Operating Speed | 旋转及开合速度均可通过控制程序调整Rotation and opening/closing speeds adjustable via control program. | 旋转及开合速度均可通过控制程序调整Rotation and opening/closing speeds adjustable via control program. | 旋转及开合速度均可通过控制程序调整Rotation and opening/closing speeds adjustable via control program. | |
| 控制类项Control Category | 基于TCP/IP协议网络控制Network control based on TCP/IP protocol | 基于TCP/IP协议网络控制Network control based on TCP/IP protocol | 基于TCP/IP协议网络控制Network control based on TCP/IP protocol | |
| 是否可以与影片绑定Video Binding Support | 是（每个脚本可以对应1个影片）Yes (Each script can correspond to 1 video) | 是（每个脚本可以对应1个影片）Yes (Each script can correspond to 1 video) | 是（每个脚本可以对应1个影片）Yes (Each script can correspond to 1 video) | |
| 是否支持多个脚本Multiple Scripts Support | 可支持多个影片对应多个脚本Supports multiple videos corresponding to multiple scripts | 可支持多个影片对应多个脚本Supports multiple videos corresponding to multiple scripts | 可支持多个影片对应多个脚本Supports multiple videos corresponding to multiple scripts | |
| 调用协议Calling Protocol | 具备外部UDP调用协议Equipped with external UDP calling protocol | 具备外部UDP调用协议Equipped with external UDP calling protocol | 具备外部UDP调用协议Equipped with external UDP calling protocol | |
| 支持自恢复功能Self-Recovery Function | 软件支持自动检测并清除错误Software supports automatic error detection and clearing | 软件支持自动检测并清除错误Software supports automatic error detection and clearing | 软件支持自动检测并清除错误Software supports automatic error detection and clearing | |
| 安装及供电Installation & Power Supply | 电源Power Supply | AC 110 ~ 240V 50/60HZ（可定制宽压电源）AC 110 ~ 240V 50/60HZ (Wide voltage power supply customizable) | AC 110 ~ 240V 50/60HZ（可定制宽压电源）AC 110 ~ 240V 50/60HZ (Wide voltage power supply customizable) | AC 110 ~ 240V 50/60HZ（可定制宽压电源）AC 110 ~ 240V 50/60HZ (Wide voltage power supply customizable) |
| 峰值功率Peak Power | 4.5KW | 7.5KW | 10.5KW | |
| 网络Network | 网线Ethernet Cable | 网线Ethernet Cable | 网线Ethernet Cable | |
| 安装Installation | 出厂时屏体和底座分拆，安装时将屏体立起与底座螺丝固定即可Screen and base shipped disassembled. Install by erecting screen and fixing to base with screws. | 出厂时屏体和底座分拆，安装时将屏体立起与底座螺丝固定即可Screen and base shipped disassembled. Install by erecting screen and fixing to base with screws. | 出厂时屏体和底座分拆，安装时将屏体立起与底座螺丝固定即可Screen and base shipped disassembled. Install by erecting screen and fixing to base with screws. |
