采用模块化设计，每个模块由多个滑动显示单元组成，安装方便，维护简单可整模块拆卸替换，也可以单个单元拆卸替换。 显示载体不限，可与 LED屏、LCD 拼接屏、LCD 显示器、投影机等不同显示载体多样化创意结合;
可实现可视化脚本，根据影片自动生成预定脚本动作脚本编辑简单便捷，零学习门槛;
采用多重防碰撞安全防护，提高设备运行稳定性，保证显示屏安全。 自研低噪音、稳定性高的传动系统，有效的减小了传动产生的噪音，同时提高了稳定性和动作准确度。
可选用不同型号规格尺寸、轻型结构和重型结构: 支持自定义加减速度、加减速时间，减少对装置本身冲击同时，使运动更加柔和。

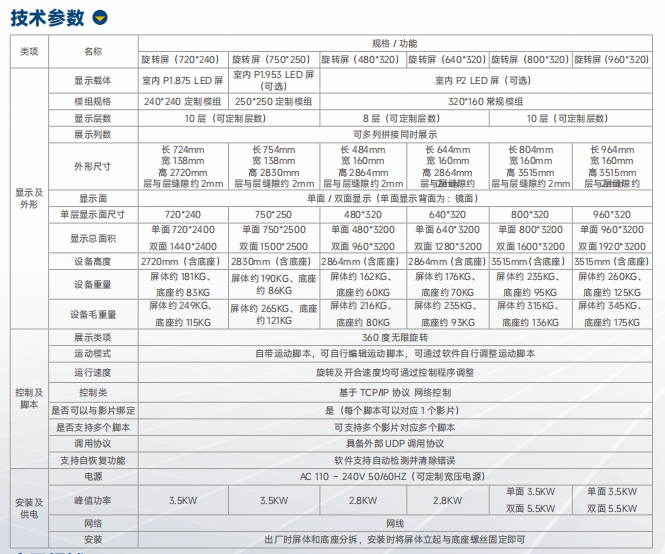

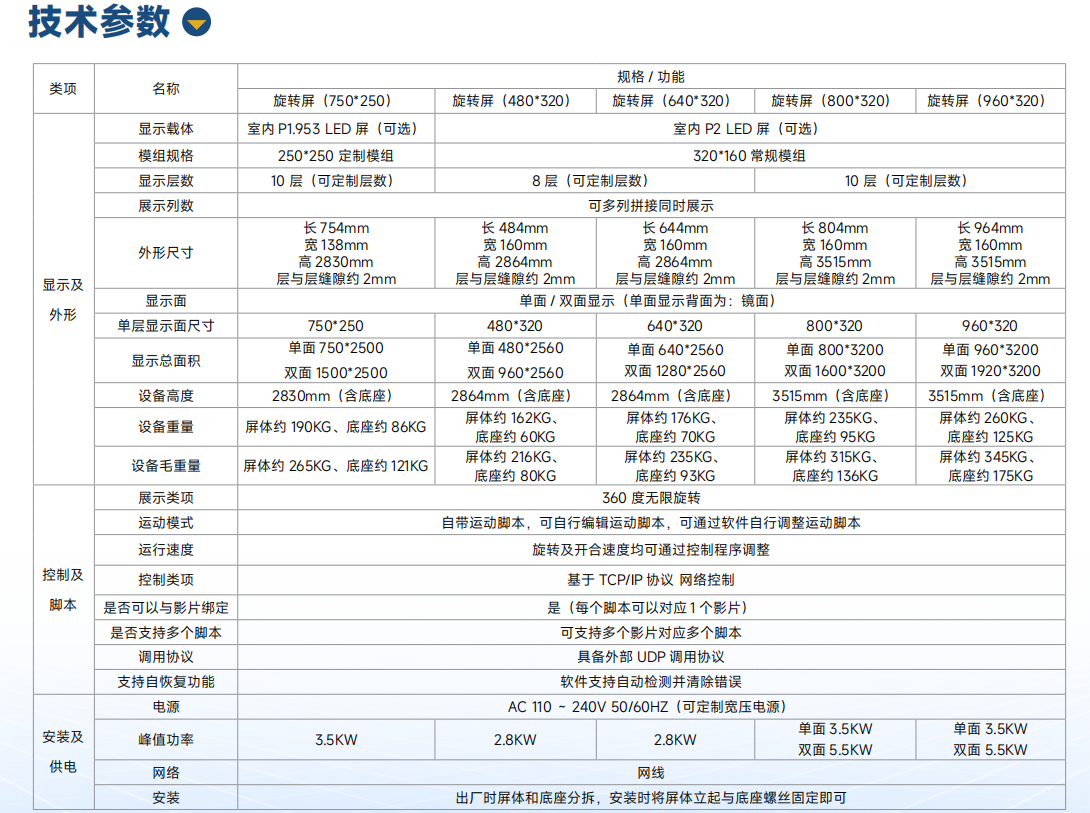

技术参数表 (Technical Specifications)
| 类项 Category | 名称 Name | 旋转屏 (750 * 250) Rotating Screen (750 * 250) | 旋转屏 (480 * 320) Rotating Screen (480 * 320) | 旋转屏 (640 * 320) Rotating Screen (640 * 320) | 旋转屏 (800 * 320) Rotating Screen (800 * 320) | 旋转屏 (960 * 320) Rotating Screen (960 * 320) |
|---|---|---|---|---|---|---|
| 显示及外形Display & Exterior | 显示载体 Display Carrier | 室内P1.953 LED屏（可选）Indoor P1.953 LED Screen (Optional) | 室内P2 LED屏（可选）Indoor P2 LED Screen (Optional) | 室内P2 LED屏（可选）Indoor P2 LED Screen (Optional) | 室内P2 LED屏（可选）Indoor P2 LED Screen (Optional) | 室内P2 LED屏（可选）Indoor P2 LED Screen (Optional) |
| 模组规格 Module Specifications | 250 * 250 定制模组250 * 250 Custom Module | 320 * 160 常规模组320 * 160 Standard Module | 320 * 160 常规模组320 * 160 Standard Module | 320 * 160 常规模组320 * 160 Standard Module | 320 * 160 常规模组320 * 160 Standard Module | |
| 显示层数 Display Layers | 10层（可定制层数）10 Layers (Customizable) | 8层（可定制层数）8 Layers (Customizable) | 8层（可定制层数）8 Layers (Customizable) | 10层（可定制层数）10 Layers (Customizable) | 10层（可定制层数）10 Layers (Customizable) | |
| 展示列数 Display Columns | 可多列拼接同时展示Support multi-column splicing for simultaneous display | 可多列拼接同时展示Support multi-column splicing for simultaneous display | 可多列拼接同时展示Support multi-column splicing for simultaneous display | 可多列拼接同时展示Support multi-column splicing for simultaneous display | 可多列拼接同时展示Support multi-column splicing for simultaneous display | |
| 外形尺寸 Exterior Dimensions | 长 754mm宽 138mm高 2830mm层与层缝隙约 2mmL 754mmW 138mmH 2830mmGap between layers ~2mm | 长 484mm宽 160mm高 2864mm层与层缝隙约 2mmL 484mmW 160mmH 2864mmGap between layers ~2mm | 长 644mm宽 160mm高 2864mm层与层缝隙约 2mmL 644mmW 160mmH 2864mmGap between layers ~2mm | 长 804mm宽 160mm高 3515mm层与层缝隙约 2mmL 804mmW 160mmH 3515mmGap between layers ~2mm | 长 964mm宽 160mm高 3515mm层与层缝隙约 2mmL 964mmW 160mmH 3515mmGap between layers ~2mm | |
| 单面/双面显示 Single/Double Sided | 单面/双面显示（单面显示背面为：镜面）Single-sided / Double-sided Display (Back side of single-sided: Mirror surface) | 单面/双面显示（单面显示背面为：镜面）Single-sided / Double-sided Display (Back side of single-sided: Mirror surface) | 单面/双面显示（单面显示背面为：镜面）Single-sided / Double-sided Display (Back side of single-sided: Mirror surface) | 单面/双面显示（单面显示背面为：镜面）Single-sided / Double-sided Display (Back side of single-sided: Mirror surface) | 单面/双面显示（单面显示背面为：镜面）Single-sided / Double-sided Display (Back side of single-sided: Mirror surface) | |
| 单层显示面尺寸 Single Layer Size | 750 * 250 | 480 * 320 | 640 * 320 | 800 * 320 | 960 * 320 | |
| 显示总面积 Total Display Area | 单面 750 * 2500双面 1500 * 2500Single-sided: 750 * 2500Double-sided: 1500 * 2500 | 单面 480 * 2560双面 960 * 2560Single-sided: 480 * 2560Double-sided: 960 * 2560 | 单面 640 * 2560双面 1280 * 2560Single-sided: 640 * 2560Double-sided: 1280 * 2560 | 单面 800 * 3200双面 1600 * 3200Single-sided: 800 * 3200Double-sided: 1600 * 3200 | 单面 960 * 3200双面 1920 * 3200Single-sided: 960 * 3200Double-sided: 1920 * 3200 | |
| 设备高度 Equipment Height | 2830mm（含底座）2830mm (Including base) | 2864mm（含底座）2864mm (Including base) | 2864mm（含底座）2864mm (Including base) | 3515mm（含底座）3515mm (Including base) | 3515mm（含底座）3515mm (Including base) | |
| 设备净重 Net Weight | 屏体约 190KG、底座约 86KGScreen: ~190KG, Base: ~86KG | 屏体约 162KG、底座约 60KGScreen: ~162KG, Base: ~60KG | 屏体约 176KG、底座约 70KGScreen: ~176KG, Base: ~70KG | 屏体约 235KG、底座约 95KGScreen: ~235KG, Base: ~95KG | 屏体约 260KG、底座约 125KGScreen: ~260KG, Base: ~125KG | |
| 设备毛重 Gross Weight | 屏体约 265KG、底座约 121KGScreen: ~265KG, Base: ~121KG | 屏体约 216KG、底座约 80KGScreen: ~216KG, Base: ~80KG | 屏体约 235KG、底座约 93KGScreen: ~235KG, Base: ~93KG | 屏体约 315KG、底座约 136KGScreen: ~315KG, Base: ~136KG | 屏体约 345KG、底座约 175KGScreen: ~345KG, Base: ~175KG | |
| 控制及脚本Control & Script | 360度无限旋转 360° Rotation | 360度无限旋转360° Infinite Rotation | ||||
| 运动模式 Motion Mode | 自带运动脚本，可自行编辑，可通过软件自行调整运动脚本Built-in motion scripts, editable. Can adjust motion scripts via software. | |||||
| 运行速度 Operating Speed | 旋转及开合速度均可通过控制程序调整Rotation and opening/closing speeds adjustable via control program. | |||||
| 控制类项 Control Category | 基于TCP/IP协议网络控制Network control based on TCP/IP protocol | |||||
| 影片绑定 Video Binding | 是（每个脚本可以对应1个影片）Yes (Each script can correspond to 1 video) | |||||
| 多脚本支持 Multiple Scripts | 可支持多个影片对应多个脚本Supports multiple videos corresponding to multiple scripts | |||||
| 调用协议 Calling Protocol | 具备外部UDP调用协议Equipped with external UDP calling protocol | |||||
| 自恢复功能 Self-recovery | 软件支持自动检测并清除错误Software supports automatic error detection and clearing | |||||
| 安装及供电Installation & Power Supply | 电源 Power Supply | AC 110 ~ 240V 50/60HZ（可定制宽压电源）AC 110 ~ 240V 50/60HZ (Wide voltage power supply customizable) | ||||
| 峰值功率 Peak Power | 3.5KW | 2.8KW | 2.8KW | 单面 3.5KWSingle-sided: 3.5KW双面 5.5KWDouble-sided: 5.5KW | 单面 3.5KWSingle-sided: 3.5KW双面 5.5KWDouble-sided: 5.5KW | |
| 网络 Network | 网线Ethernet Cable | |||||
| 安装 Installation | 出厂时屏体和底座分拆，安装时将屏体立起与底座螺丝固定即可Screen body and base are disassembled upon factory shipment. Installation involves erecting the screen body and fixing it to the base with screws. |
